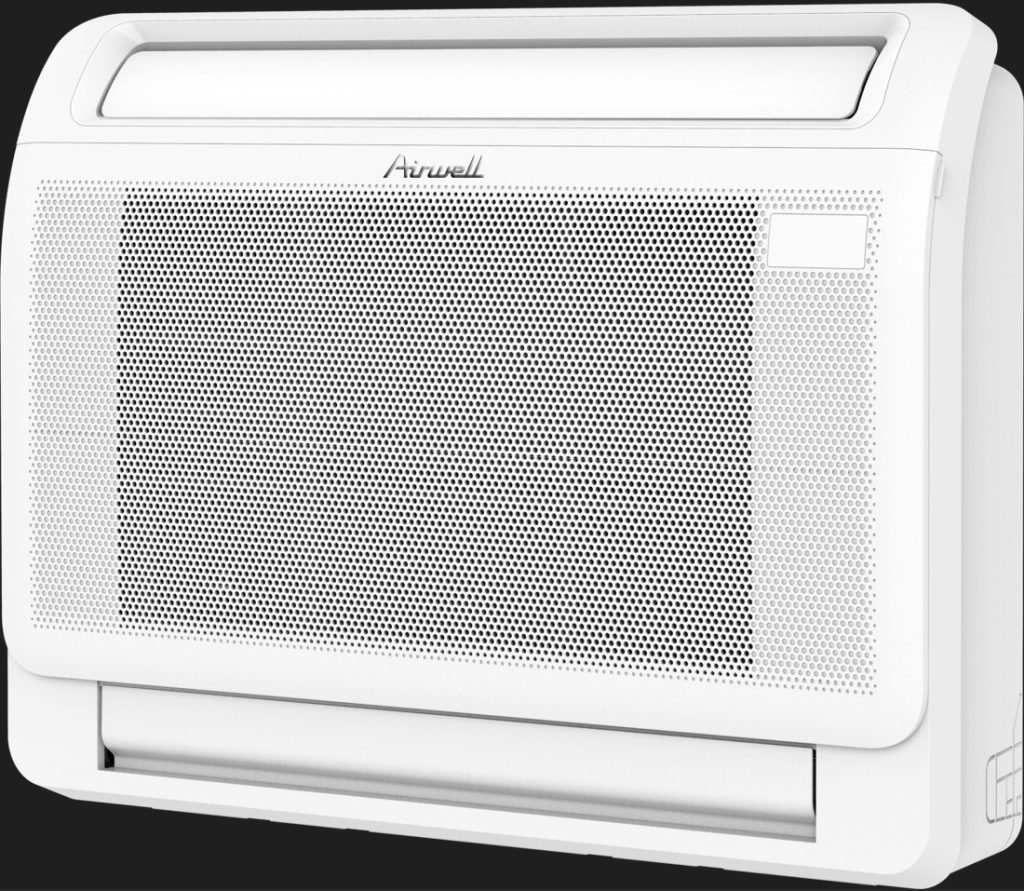

XDMX-035N-09M25

7SP071435

Technical data
Alarm code
Display—
Number of led blinkingON
Alarm code meaningIndoor units mode conflict(match with multi outdoor unit)
DisplayEC 07
LED TimerOFF
Alarm code meaningNo fan motor feedback on outdoor unit board (DC fan motor only)
DisplayEC 0d
Number of led blinking14
LED TimerOFF
Alarm code meaningSee alarm code on outdoor unit
DisplayEC 51
Number of led blinking5
LED TimerOFF
Alarm code meaningOutdoor unit EEPROM parameter error
DisplayEC 52
Number of led blinking5
LED TimerOFF
Alarm code meaningOutdoor exchanger temperature sensor T3 disconnected or short circuited
DisplayEC 53
Number of led blinking5
LED TimerOFF
Alarm code meaningOutdoor ambiant temperature sensor T4 disconnected or short circuited
DisplayEC 54
LED TimerOFF
Alarm code meaningDischarge temperature sensor Tp disconnected or short circuited
DisplayEC 56
LED TimerOFF
Alarm code meaningIndoor exchanger temperature sensor T2B disconnected or short circuited
DisplayEH 00 / EH 0A
Number of led blinking1
LED TimerOFF
Alarm code meaningEEPROM empty or damaged
DisplayEH 03
Number of led blinking4
LED TimerOFF
Alarm code meaningFaulty indoor fan motor
DisplayEH 0E
Number of led blinking13
LED TimerOFF
Alarm code meaningWater flow detector in high position or disconnected
DisplayEH 60
LED TimerOFF
Alarm code meaningIndoor ambiant temperature sensor T1 disconnected or short circuited
DisplayEH 61
LED TimerOFF
Alarm code meaningIndoor exchanger temperature sensor T2 disconnected or short circuited
DisplayEL 01
Number of led blinking2
LED TimerOFF
Alarm code meaningNo communication between indoor and outdoor unit
DisplayEL 0C
LED TimerOFF
Alarm code meaningrefrigerant circuit protection
DisplayPC 00
LED TimerFLASH
Alarm code meaningPower board (IPM) or protection again high current
DisplayPC 01
LED TimerFLASH
Alarm code meaningProtection against overvoltage or low voltage
DisplayPC 02
LED TimerFLASH
Alarm code meaningHigh temperature protection on power board or compressor
DisplayPC 03
LED TimerFLASH
Alarm code meaningHigh or low pressure protection
DisplayPC 04
LED TimerFLASH
Alarm code meaningCompressor IPM problem
